Gas Pressure Reducing Stations

Field of Activity


Produced over 2,500 gas reducing and metering stations for below applications:


  • City Gate Gas Transmission
  • Natural Gas distribution network
  • CNG stations
  • Power plants
  • Petrochemical plants

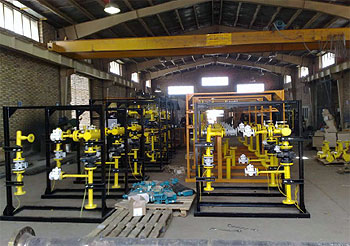

gas projects

gas projects

gas projects

gas projects

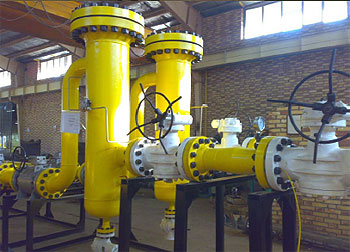

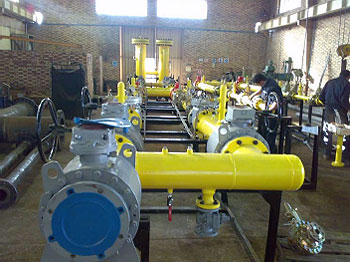

Gas Reducing Station


Gas Reducing Station

Main Parts


EZR, EZH

EZR, EZH (Top Entry Pilot Regulated) Tight Shutoff Robust Quiet Operation Internally Actuated Debris Protection High Accuracy Easy In‐Line Maintenance In‐Service Travel Indicator



FL

FL (Axial ‐Pilot Regulated) High Capacity Versatility Counterbalanced Shutter Full Strength Diaphragm ES
Easy Startup No Atmospheric Bleed Tight Shutoff Quiet Operation Modularity Design



DRPN

DRPN (Direct Acting) Noise Attenuation Ease of Maintenance SitSuitablble for Compactt Installations Integral Slam‐Shut



MP

MP (Top Entry) Suitable for All Flows and Pressures Rugged Construction Reliable Operation Ease of Maintenance



OSE

OSE Shutoff Device Positive Shutoff Overpressure Protection without Discharge to Atmosphere Two Stage Tripping Mechanism Internal Bypass Equalizer High Accuracy Easy In‐Line Maintenance


Integrated Solutions - Distribution Segment


Pin: 16 bar

Pout: as per request

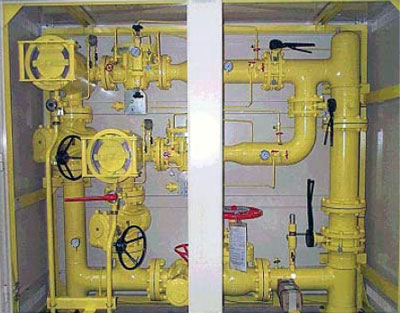

Distribution Segment

Distribution Segment

Distribution Segment

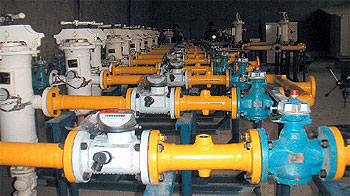

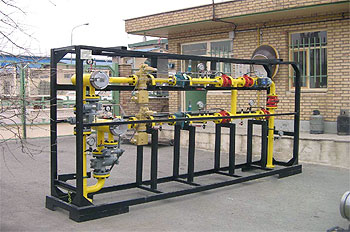

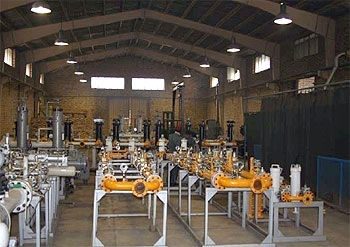

Gas to Industries


We Offer complete range of metering and reducing stations for Industries.

Gas to Industries

Gas to Industries

Gas to Industries
Gas to Industries

Gas to Industries

Gas to Industries

Samples of projects


Customer Year Qty. Description
N.I.G.C 2003 92 Industrial Reducing Gas Station

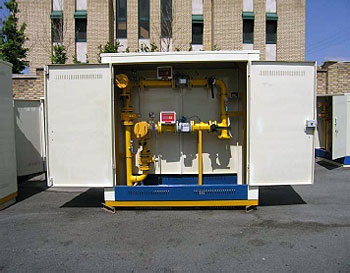

N.I.G.C 2003 190 Cabinet Reducing Gas Station-2500,5000,10000
N.I.G.C 2003 540 Cabinet M etering & Reducing Gas Station
N.I.G.C 2004 62 Metering Gas Station-CNG 2500
Kordestan Province Gas Co 2004 51 Reducing Gas Station-1000,2500,10000 Scmh
Guilan Province Gas Co 2005 18 Reducing & Metering St. 1000,2500,8000 Scmh
M azandaran Province Gas Co 2005 30 Metering Gas Station-400,1000,2500 Scmh
West Azarbayjan Co 2006 46 Cabinet Reducing & metering St. 10000 Scmh
Khorasan Province Gas Co 2007 1 CGS50000 Scmh Skid Reducing & Metering St
Isfahan Province Gas Co 2007 5 Skid Stations CGS 100000,200000,300000 Scmh
Mapna Co 2008 1 CGS50000 Scmh Skid Reducing & Metering St
Gas Co,Tanzania 2008 1 kid Reducing & Metering Gas Station-23600 Scm
East Azarbayjan Province Gas 2008 130 Reducing & Metering St-400 to 20000 Scmh
NIOPTC 2008 412 Cabinet Reducing & M etering Gas Station
Iran Power Development Co 2008 1 CGS300000 Scmh Skid Reducing & Metering St
N.I.G.C 2008 50 CGS20000 Scmh Skid Reducing & Metering St
Kherad Energy -Fajr 2 2009 1 Reducing & Metering Gas Station-45700 Scmh
SPEC M OBIN Petrochemical 2009 1 Reducing & Metering Gas Station-211327 Scmh

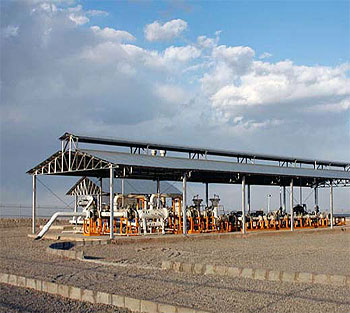

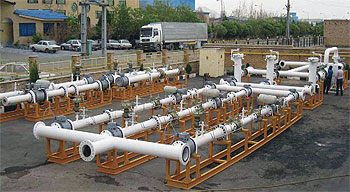

Isfahan


P1: 70 – 40bar

P2: 17 bar

Q: 200,000 Scmh


Isfahan

Isfahan

Kashan


P1: 70 – 40 bar

P2 : 17 bar

Q: 100,000 Scmh


Kashan

Exportedto Tanzania


P1: 90 - 20 Bar

P2: 8 Bar

Q: 23,600 Scmh


Exportedto Tanzania

Exportedto Tanzania

Exported


P1: 5 – 1.5 bar

P2: 1.5 bar

Q: 840


Exported

Exported


P1: 10 - 6 bar

P2: 4 bar

Q: 1,500 Scmh


Exported
